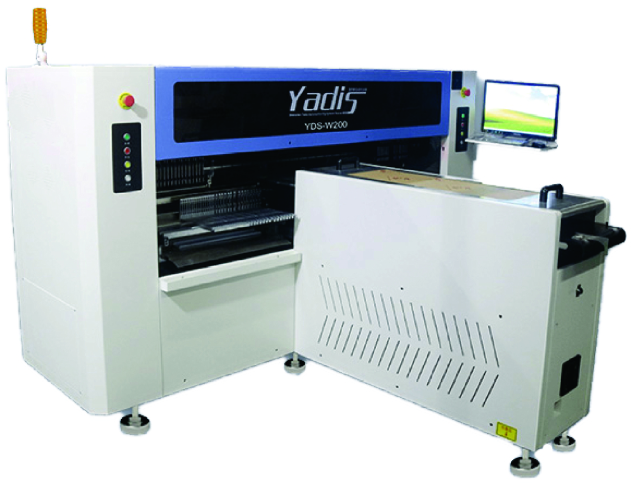

YDS-W200S Pick & Place Machine
The YDS-W200S Pick & Place Machine is a high-performance SMT placement system designed for high-speed, high-precision component assembly. It is ideal for mass production of LED lighting, consumer electronics, and industrial PCBs. Featuring a multi-head placement system, advanced vision alignment, and intelligent automation, this machine ensures seamless production, reduced errors, and enhanced efficiency.
With a placement speed of up to 45,000 CPH, the YDS-W200S is built to handle large-scale, high-demand manufacturing environments. Its user-friendly touchscreen interface, automated feeder system, and robust industrial construction make it a reliable, cost-effective solution for modern PCB assembly lines.
Product Features
- High-Speed Component Placement – Achieves up to 45,000 CPH (Components Per Hour) for fast and efficient production.
- Advanced Vision System – Ensures ±0.01mm placement accuracy for precise component alignment.
- Large PCB Compatibility – Supports PCB sizes up to 1600mm, making it ideal for LED and industrial PCBs.
- Multi-Feeder System – Works with multiple intelligent feeders for seamless, high-speed operation.
- Automated Inline Conveyor System – Allows for continuous, hands-free production integration.
- User-Friendly Touchscreen Interface – Smart control system with real-time monitoring and error detection.
- Industrial-Grade Build – Designed for 24/7 operation with minimal maintenance.
- Energy Efficient & Cost-Effective – Reduces power consumption while maximizing productivity.
Product Applications
- LED Lighting Industry – Assembly of LED panels, strip lights, streetlights, and display boards.
- Consumer Electronics – Manufacturing of smartphones, smart home devices, and IoT circuit boards.
- Automotive Electronics – PCB assembly for LED headlights, dashboard displays, and infotainment systems.
- Medical Equipment – PCBs for diagnostic devices, wearable health monitors, and medical imaging technology.
- Industrial Electronics – High-precision placement for control boards, power supplies, and automation systems.
